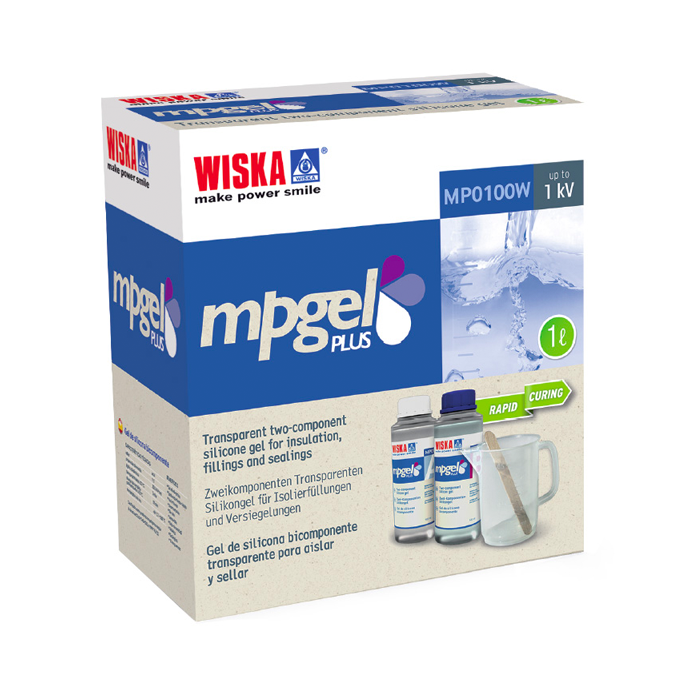

Wiska MPGel Plus 2 x 0.5l Transparent Insulating Gel, 2 Components Silicone Gel for Fillings and Sealings

This is the Wiska MP0100W MPGel Plus transparent two-component silicone gel for insulation, fillings, and sealings.

Wiska MP0100W - Applications and Advantages

• Junction box filler
• Electrical insulation on cables and accessories up to 0,6/1 Kv
• Electronic boards and component insulation
• Very fast cross-linking Re-enterable
• Non toxic, Easily pourable
• No waste thanks to separate containers, the graduated jug and perforation pouring system
• Excellent electrical insulation
• Protection from the elements (rain, humidity) from dust and the intrusion of animals, insects, leaves
• Good mechanical strength
• No expiry date/reuseable after opening

Wiska MPGel Plus Silicone Gel - Technical Specs

• High dielectric strength.
• High moisture protection.
• Dielectric strength: 25.5 kV/mm
• Working time at 23deg C: 5min
• Polimerization time at 23deg C: 12min
• Operating temperature: -60deg to +200deg C
• Mixing ratio: 1:1
• Up to 1 kV
• Volume: 2 x 500 ml
• Model: Wiska MP0100W
• Two components Gel. CE Mark. RoHS
