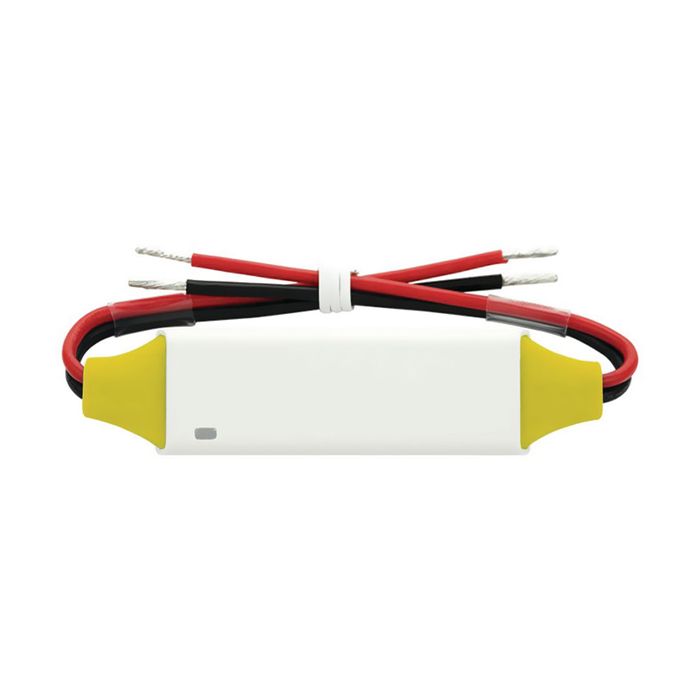

Integral 20W Constant Voltage SECONDARY Casambi Decoder
INTILCTCAS-SDF20-S
5055788287834
3 Years Warranty
Free Delivery on orders over £100
Description
Suitable for controlling Single colour and Tunable White LED downlights
Input: 48VDC + PLC data
Output: 0-20W / 0-48VDC
Adjustable Constant Current: 0-700mA (via Casambi app)
Used in conjunction with ILCTCAS-PD200CB Primary driver
£26.74
£22.28
In stock
For areas inaccessible by Bluetooth signal, use our combination of Primary and Secondary application drivers to allow full connectivity.
This Secondary driver requires 48VDC input along with Casambi-to-power-line communication from a Primary unit, and can be used for connecting single colour or CCT-tunable LED panels and downlights into a local hard-wired network operated without the need of direct BLE signal reception.
The constant current adjustment, gradient speed, current trim level, zoning & grouping features are adjustable from the Casambi app and the Primary driver will transfer the commands to connected Secondary drivers via the power cable based on "Power-On" status detection. One Secondary driver is required for each connected luminaire.
| SKU | INTILCTCAS-SDF20-S |
|---|---|
| Brand | Integral |
| EAN (GTIN) Code | 5055788287834 |
| Manufacturer's Part Number (MPN) | ILCTCAS-SDF20-S |
| Manufacturer's Product Name | INTEGRAL CONSTANT CURRENT DRIVER SECONDARY UNIT 20W 0-700MA IP20 0-48VDC OUTPUT POWER-LINE-DIMMABLE 48V INPUT |
