Knightsbridge EMGUKIT3 GU10 LED Emergency Conversion Kit – 3 Hour
MLAEMGUKIT1
5056270893496
3 Years Warranty
Free Delivery on orders over £100
Description
Knightsbridge emergency conversion kit for compatible mains-voltage GU10 LED lamps up to 7W. Supports maintained, non-maintained and switched operation, with three-hour emergency duration, pre-wired connectors and an LED charge indicator. GU10 lamp not included.
£48.73
£40.61
In stock
Knightsbridge EMGUKIT3 GU10 LED Emergency Conversion Kit
The Knightsbridge EMGUKIT3 emergency conversion kit enables a compatible mains-voltage GU10 LED downlight to provide emergency illumination following a power failure. It is suitable for GU10 LED lamps rated up to a maximum of 7W, subject to compatibility testing.

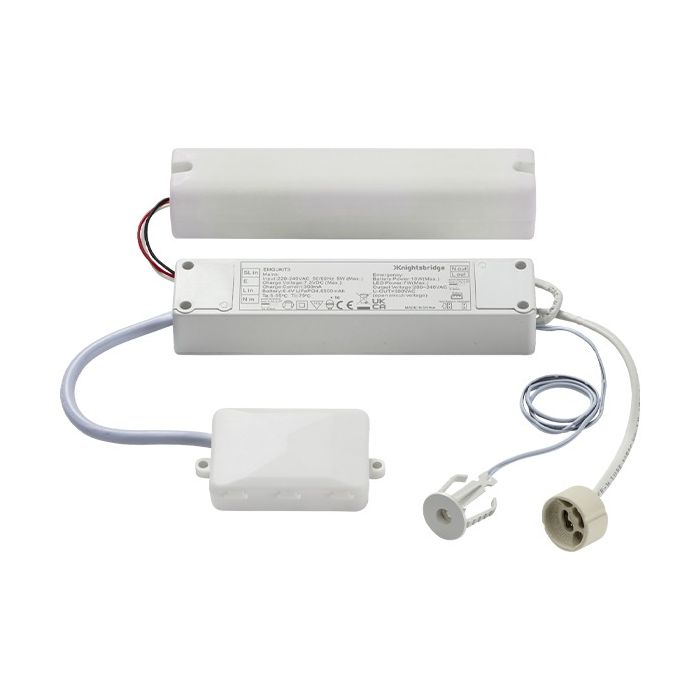

The kit contains an inverter and rechargeable battery pack inside a protective polycarbonate casing. It is pre-wired with easy-fix connectors and includes an LED charge indicator, helping simplify installation and routine inspection.
Please note: this is an emergency conversion kit rather than a complete downlight. The GU10 lamp, lampholder and downlight fitting are not included.
Three-Hour Emergency Duration
Following an interruption to the mains supply, the battery pack powers the connected compatible GU10 LED lamp for up to three hours. This allows suitable downlights to form part of an emergency-lighting scheme for escape routes, corridors, stairwells and other designated areas.
The suitability, positioning and quantity of converted fittings should be determined by a competent person in accordance with the relevant emergency-lighting requirements.
Maintained and Non-Maintained Operation
The EMGUKIT3 supports maintained, non-maintained and switched emergency configurations:
- Maintained: the connected lamp operates normally and remains illuminated at its emergency output following a mains failure
- Non-maintained: the lamp activates only when the mains supply fails
- Switched maintained: normal illumination can be switched while the emergency function remains permanently supplied
Compatible GU10 LED Lamps
The kit is designed for use with compatible 230V GU10 LED lamps up to 7W. Lamp compatibility must be checked before installation, as not every GU10 LED lamp or internal driver will operate correctly from an emergency inverter.
The completed emergency fitting is non-dimmable. It should not be connected to a dimmer, even if the chosen GU10 lamp is normally described as dimmable.
Installation Features
The inverter and battery are enclosed within a compact protective casing measuring 185mm long, 50mm wide and 40mm high. A 55mm access cut-out is required to pass the enclosed unit through the ceiling.
Pre-wired easy-fix connectors help reduce installation time, while the visible LED indicator confirms that the unit is connected to the mains charging supply.
Key Features
- Emergency conversion kit for compatible GU10 LED downlights
- Suitable for mains-voltage GU10 LED lamps up to 7W
- Three-hour emergency duration
- Maintained, non-maintained or switched operation
- Inverter and battery contained within a protective casing
- Pre-wired easy-fix connectors
- LED charge-status indicator
- Compact design for installation above a ceiling
- 55mm access cut-out required
- Class II double-insulated construction
- Three-year manufacturer’s warranty, including the battery
- GU10 lamp not included
Product Specifications
| Manufacturer | Knightsbridge |
|---|---|
| Product code | EMGUKIT3 |
| Product type | GU10 LED emergency conversion kit |
| Compatible lamp type | 230V GU10 LED |
| Maximum lamp wattage | 7W |
| Emergency duration | 3 hours |
| Emergency operation | Maintained / non-maintained / switched |
| Mains voltage | 230V 50Hz |
| Charge indicator | LED indicator included |
| Cut-out diameter | 55mm |
| Dimensions | 185mm long × 50mm wide × 40mm high |
| Construction | Polycarbonate |
| Finish | White |
| IP rating | IP20 |
| Dimmable | No |
| Electrical class | Class II |
| GU10 lamp included | No |
| Downlight included | No |
| Warranty | 3 years, including the battery |
| GTIN | 5056270893496 |
Compatibility note: A GU10 lamp is not supplied. Check the selected lamp and downlight for compatibility before installation. The conversion kit must be installed and commissioned by a suitably qualified person.
| SKU | MLAEMGUKIT1 |
|---|---|
| Brand | MLA-Knightsbridge |
| Colour / Finish | White |
| Colour Temperature | Lamp Dependent |
| Colour Rendering (CRI) | Lamp Dependent |
| Lumen Output | Lamp Dependent |
| Beam Angle | Lamp Required |
| Fire Rated | No |
| LED Integrated | No |
| Cut-out Size (mm) | 55mm |
| Product Cap Base | GU10 |
| Lamp Life | Lamp Required |
| Product Length | 185mm |
| Product Width | 50mm |
| Dimmable | No |
| IP Rating | IP20 |
| Wattage | 5W |
| Voltage | 220-240v Mains Voltage |
| EAN (GTIN) Code | 5056270893496 |
| Manufacturer's Part Number (MPN) | EMGUKIT3 |
| Manufacturer's Product Name | 230V 5W GU10 LED Emergency Kit |
