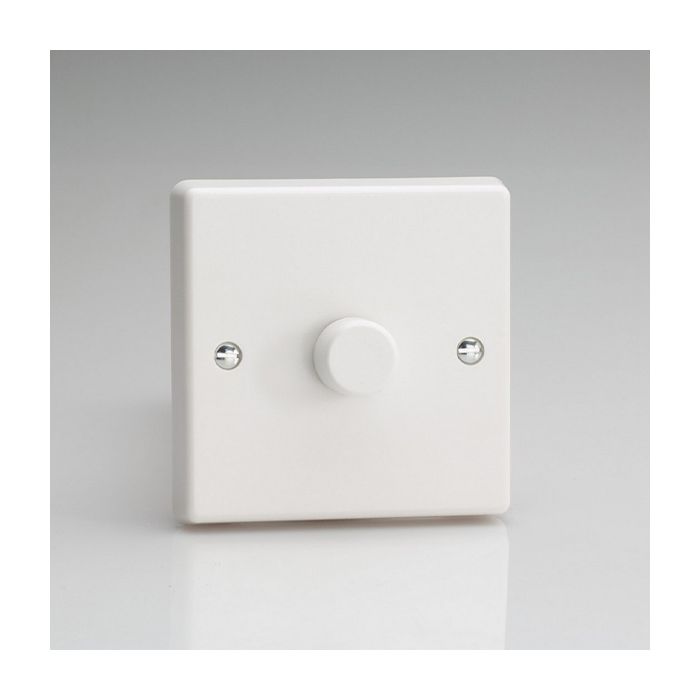

Varilight JQS1W V-PRO 1 Gang Slave Smart LED Dimmer

Varilight Smart WIFI 1 Gang Dimmer Slave

• Traditional rotary dimming with Multi-Way operation when used with Companion controllers
• V-Pro Smart Control for intuitive dimming
• Simplified programming system for easy setup, with adjustable minimum brightness setting and choice of driving modes
• Full dimming control from up to 3 dimmer locations
• Use with V-Pro Smart master dimmers in multi-way circuits

Products Features

• Dimensions: 85x85x46mm
• Faceplate Depth: 11mm
• Net Weight: 156g
• Gross Weight: 90g
• Fixing Centres: 60.3mm
• Depth from Mounting Face: 15.3mm
• Recommended Back Box Depth: 25mm
• Operating Voltage: 230v 50Hz
• Maximum Load Rating: See master dimmer
• Maximum Current Rating: -
• Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
• Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
